RHF1SFE2
Fire Extinguisher Monitoring Sensor
The RHF1SFE2 is an ultra-low-power smart fire extinguisher monitoring node designed by RisingHF Network(Shenzhen) Co., Ltd. It integrates a dedicated pressure sensor for fire extinguishers, a 3-axis accelerometer, an obstacle sensor, and a temperature sensor. The device is designed for real-time monitoring of fire extinguishers and enables network connectivity for centralized management and maintenance.
Product Description
Main Features
Application Area
Ordering Information
Download Resources

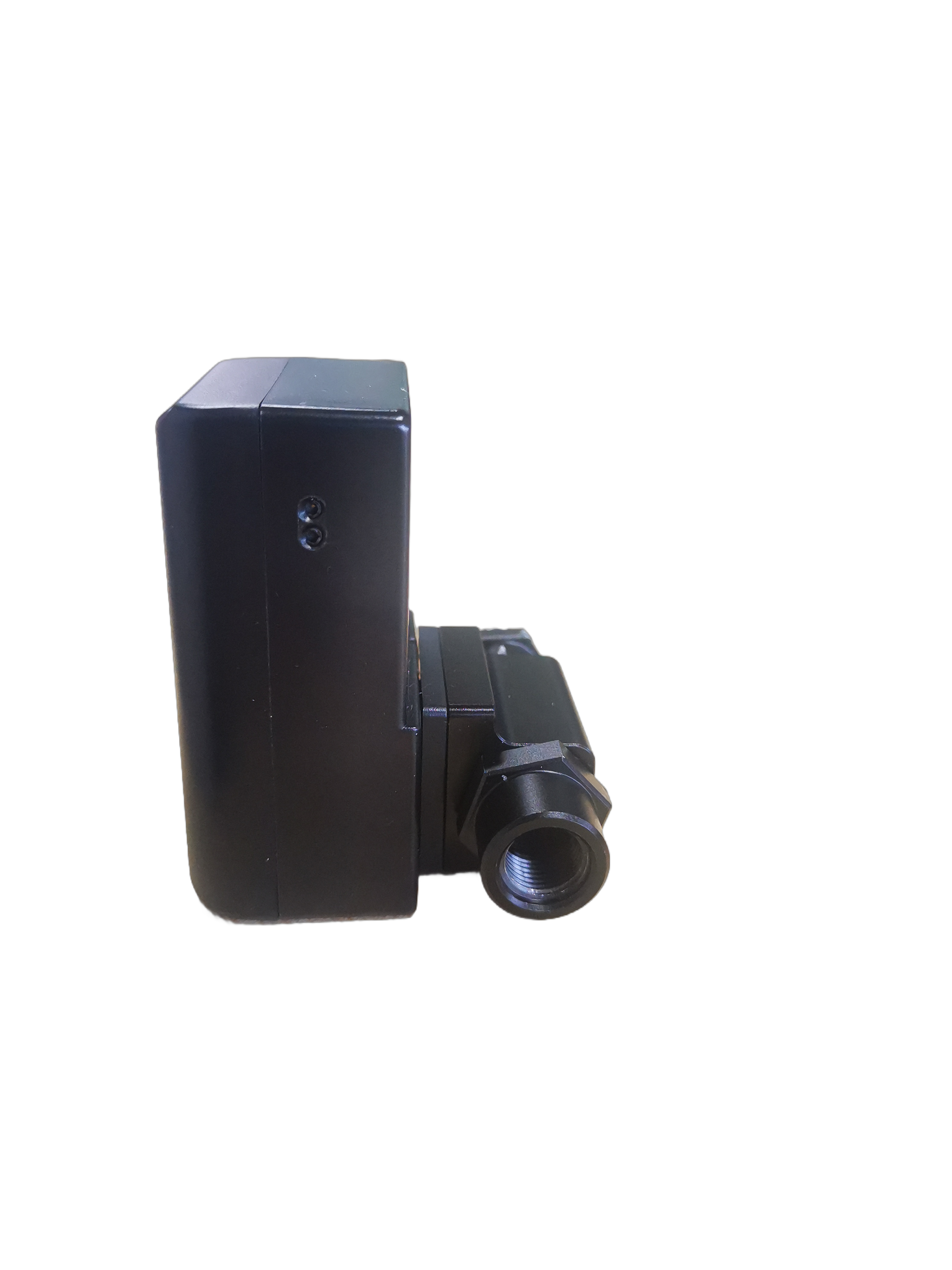

PRODUCT DESCRIPTION
Once activated, the sensor periodically reports the fire extinguisher's temperature, gas pressure, battery level, and obstruction status. It can also actively send alerts for abnormal temperature, motion, pressure, obstruction, or low battery to support real-time monitoring and proactive safety. Device parameters can be configured and firmware upgraded through the reserved user interface. Powered by a 2000mAh rechargeable lithium battery, the sensor offers a typical battery life of up to 2 years. Operating temperature: -20 to 70°C. The product features an ABS housing and copper fittings, designed for threaded installation on fire extinguishers.
Main Features
LoRaWAN
Communication：LoRaWAN®；Supports LoRaWAN® Relay Slave mode
Fire extinguisher status periodic reporting
The reporting cycle time is configurable. Fire extinguisher proactively reports alarms
Max transmission power
TXOP = 22 dBm
Antenna and installation method
Built-in antenna; Installed through threads
Power Consumption
Sleep current: 20 µA，Average current: 50 µA; Protection level: IP53
Li-On rechargeable
Rechargeable lithium battery with a typical service life of 2 years; Operating temperature range: -20~70℃
Sensors Supported
Gas pressure sensor, 3-axis accelerometer sensor, Temperature sensor, Obstacle sensor, Battery level sensor, Hall sensor
User Interfaces
Charging: USB Type-C; Configuration/Firmware upgrade: Infrared interface; Fire extinguisher thread adapter
Application Area
Intelligent Building
Safety protection
Home Health
Energy saving
Smart Office
Ordering Information
| Part Number | Specification |
|---|---|
| RHF1SFE2-US915-Mx | intelligent extinguisher sensor, LoRaWAN, band US915，suffix Mx to define Fire Extinguisher Outer diameter of thread* |
| RHF1SFE2-AU915-Mx | intelligent extinguisher sensor, LoRaWAN, band US915，suffix Mx to define Fire Extinguisher Outer diameter of thread |
| RHF1SFE2-AS923-Mx | intelligent extinguisher sensor, LoRaWAN, band US915，suffix Mx to define Fire Extinguisher Outer diameter of thread |
| RHF1SFE2-CN470-Mx | intelligent extinguisher sensor, LoRaWAN, band US915，suffix Mx to define Fire Extinguisher Outer diameter of thread |
Remark： *Mx Optional fire extinguisher pressure gauge with external thread diameter: -M8 -M10 -others
